Description

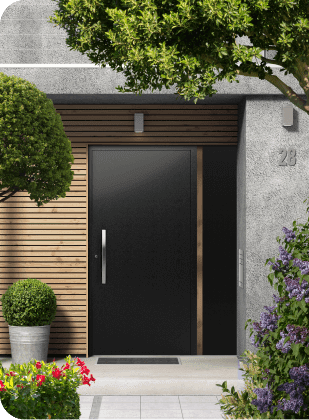

A highly insulated, solid door system that enables the creation of unique pivot door structures. It meets modern requirements for safety, thermal insulation and stability, while allowing the creation of really large entrance doors. It can also be an interesting alternative to traditional balcony or terrace doors. The pivot door can also be used in a single door configuration or in a multitude of doors for projects such as concert halls, restaurants, or schools.
The door can be panelled or glazed and open outwards or inwards. The door is structurally compatible with Masterline 8 Functional. It also has similar thermal insulation parameters. Doors of this type can be easily supplemented with automatic devices for opening and closing the door by means of a code or finger scan.
NEW! Aluminium Doors Masterline 8 Pivot are now available with Despiro door panels. Such a solution offers security, functionality
and a unique design. In this configuration, it is possible to make doors up to 3 m high, opening inwards and outwards. The system uses aluminium sheet with the best parameters and a thickness of 3 mm on both sides.

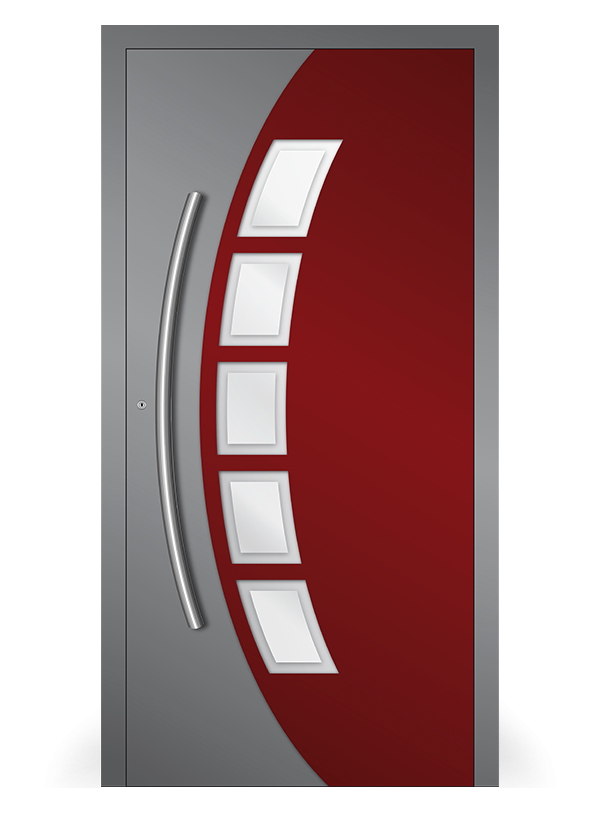

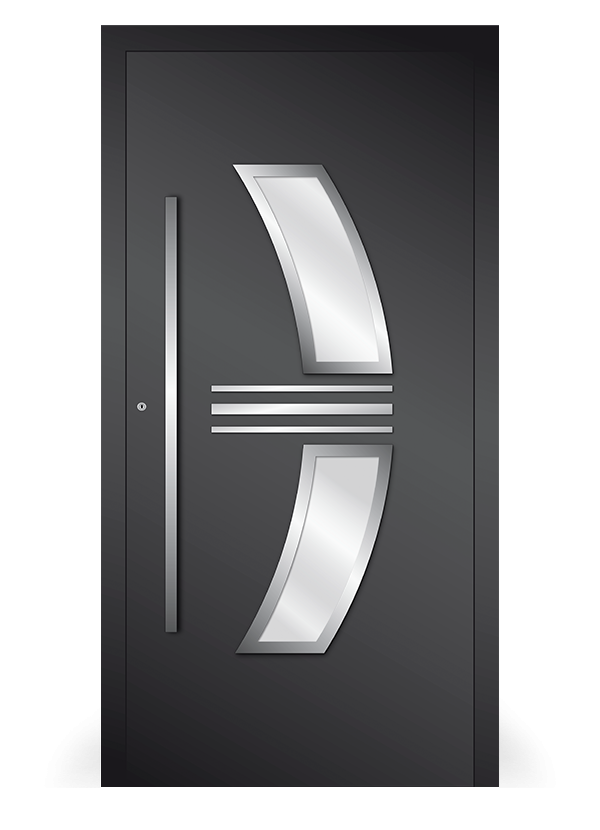

Available Despiro door panels in the Masterline 8 pivot system:
Masterline 8 Pivot:

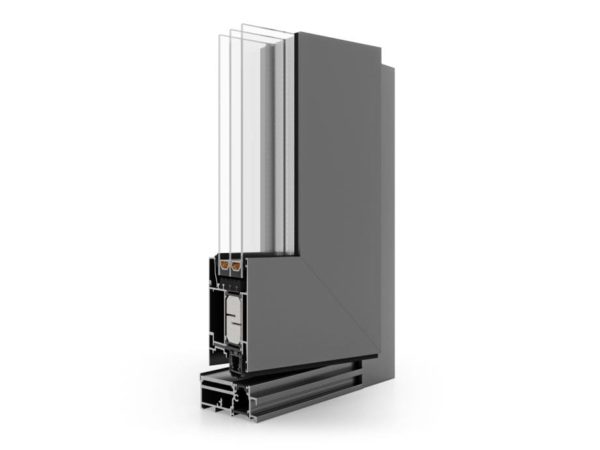

- Frame installation depth: 77 mm
- Sash depth: 77 mm
- Glazing with packages from 10 to 62 mm
- The offer is complemented by a large range of available aluminium Despiro door panels
- Minimum dimensions of the window sash: L 1310 mm, H 2125 mm
- Maximum dimensions of the window sash: L up to 1700 mm, H up to 3000 mm
- Maximum sash weight: 250 kg
- High water and air tightness and excellent thermal parameters confirmed by the Passive Housing certificate
- Class 3 requirements for burglary resistance
- The possibility to create doors with very large dimensions
- Proven exceptional durability (class 8)
